MEP BIM service

MEP BIM service is one of core services we are focusing on.
Our dedicated MEP team is selected according to their educational background and experience. We have 2 plumbing technician, an electrical technician, an HVAC technician, all of them graduated from National University of Civil Engineering and have at least 2 year experiences in MEP design. Our MEP BIM services include:
MEP modeling

HVAC modeling from 2D CAD

We use Revit MEP to develop 3D model across all trades using level of development standard within industry specifications.

3D HVAC modeling - LOD 300

3D mechanical model LOD 300

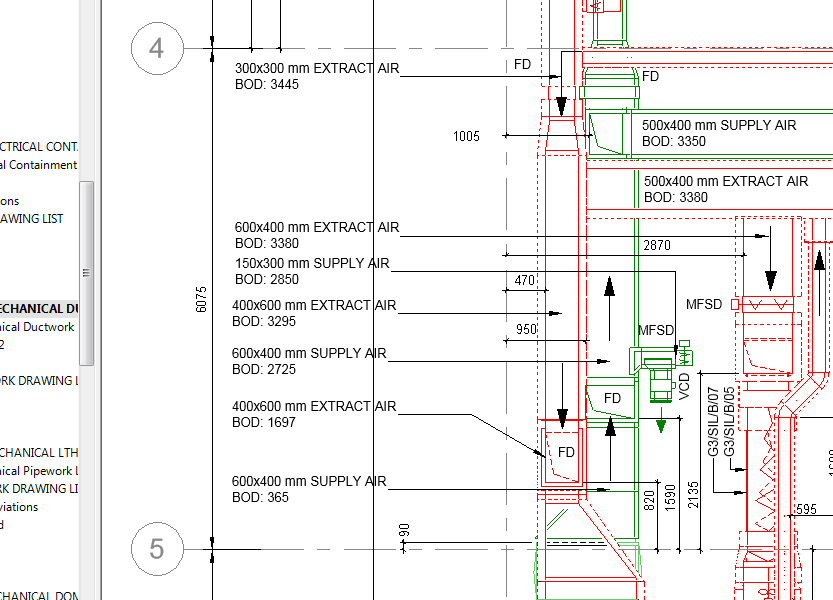

HVAC detail drawing

HVAC detail drawing

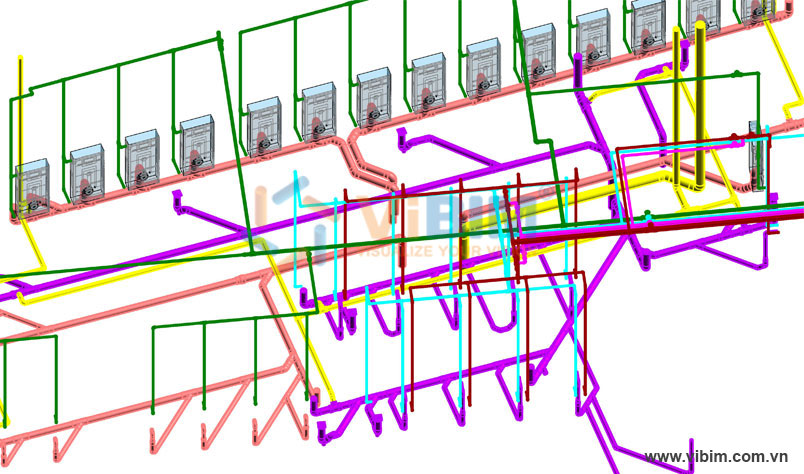

3D Plumbing System Model - LOD 300

3D plumbing modeling from 2D cad drawing

We use Revit software to model both wet and dry protection systems, and fire sprinklers and their piping.

We also help clients check for interferances and adjust the routing as needed to avoid conflicts, especially with sprinkler piping because it shares the ceiling space with many other building systems - structural elements, electrical wiring and lighting fixtures, and mechanical ductwork

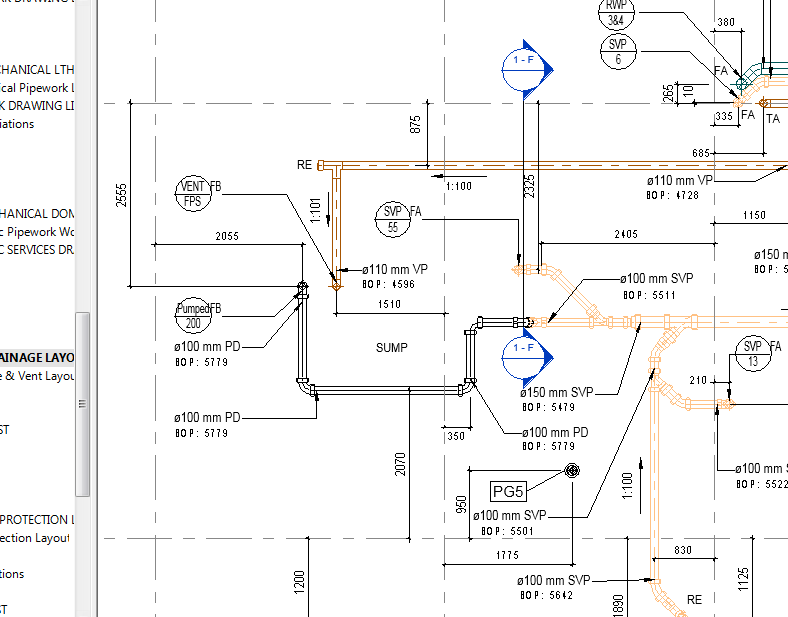

Plumbing detail drawing

Plumbing detail drawing


-3D Electrical Model - LOD 300

3D Electrical modeling from 2D CAD drawing

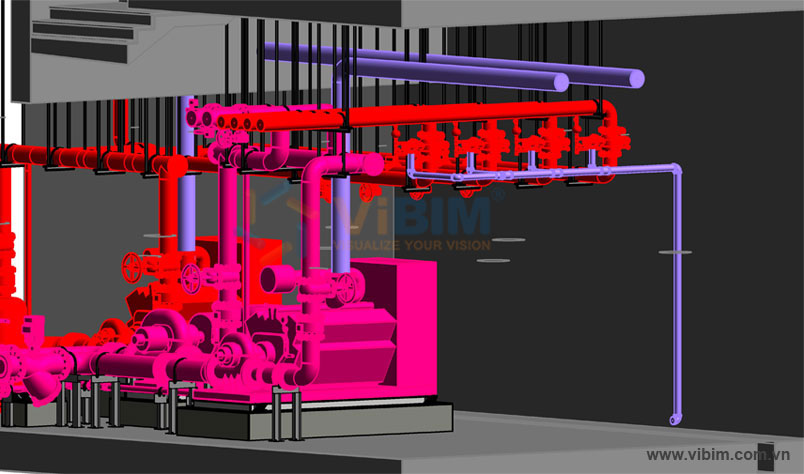

-3D Fire protection model - LOD 350

3D fire protection modeling from 2D cad drawing

MEP coordination
  • Produce MEP shopdrawing
MEP shopdrawing
Our services will benefit a lot to MEP contractors and engineers. In the process of modeling and coordinate, we highlight clash and error in the MEP design to export the accurate documentation for the construction.
